Universal ball mill equipment is one of the necessary equipment for urban construction and development

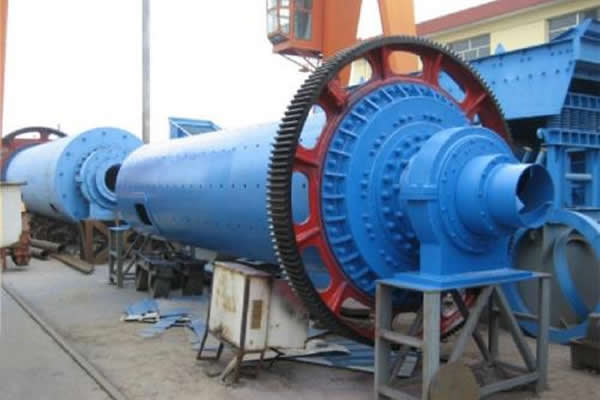

Ball mill is the equipment of material grinding, grinding and pulverizing. It is the core equipment in many industry production lines. So the normal operation of ball mill is related to the production of the whole production line. So these feet can see the importance of ball mill. Therefore, in view of the newly purchased trial operation stage of ball mill, Tongjia industry summarized some experience and shared with you.
1. In the first step after the installation of the ball mill, the empty-car test method is adopted to close the control button of the ball mill equipment, drive the pinion of the reducer to rotate under the action of motor power, and the ball mill rotates with the pinion acting on the big gear at an average speed for 12-24 hours continuously, and closely monitor whether the ball mill rotation is abnormal or not, and make a good record.
2. After the empty-car test, the stage feeding test machine will start, and the number of feeding and steel balls will be one third of the normal matching ratio. Continue to rotate for 12-24 hours to observe closely the operation of the ball mill and record well. After the first stage, the second stage feeding and the number of steel balls will be two-thirds of the normal matching ratio, and continue to run for 24-48 hours. The last stage is full ball full material operation, and strict monitoring for more than 72 hours and record, if there is no problem need to confirm again whether the bolt of the mill is tightened.
3. When testing the ball mill, we should always monitor whether the temperature is normal, such as lubrication system, motor, transmission shaft, reducer and so on.
4. Finally, attention should be paid to checking whether the contact between the tooth surfaces of the big and small gears meets the requirements of the drawings. If everything is normal, it can be turned on exactly.
Correct trial operation of ball mill can prevent accidents and increase the service life of ball mill. So when you buy a new ball mill, you must observe and record it carefully. If you have any questions about ball mill, you can communicate with Tongjia industry.
